The latest development of the folding machine is ironers follow ancillary equipment, with the ability to identify the width of linen, folding highly accurate, user-friendly design, the use of highly intelligent LCD touch screen operating system, has a good user interface.
MCU control, touch screen display, high anti-interference performance. There are two independent drive motor inverter control with folding speed 50m/min the stepless adjustable features, can be matched with various types of screed machine. It has three fold ,five fold function, the largest range of 3000 × 3000mm.
Improve diagnostic capabilities and security systems to facilitate daily use and maintenance of the machine; domestic first anti-static function adds to the reliability and stability of the machine.
| 型號 Model | ZD3000-V |
|
最大折疊長*寬(mm) largest folding length * width |
3000×3000 |
|
最大折疊次數(times) biggest fold number |
5 |
|
折疊速度(m/min) Folding speed |
10-50 |
|
壓縮空氣壓力(mpa) compressed air pressure |
0.7 |
|
壓縮空氣(m^3/min) compressed air |
0.2 |
|
額定輸入功率(kw) rated power input |
1.3 |
|
外形尺寸(mm) Dimension |
4200×2800×1760 |
|
重量(kg) Weight |
1600 |
|
 |
 |
 |
 |
|
|
|
| E-mail to us:
| |
 |
GXQ series fully automatic fully enclosed dry cleaning machine
全自動溫控熱縮機
超凈烘鞋機：HX-40

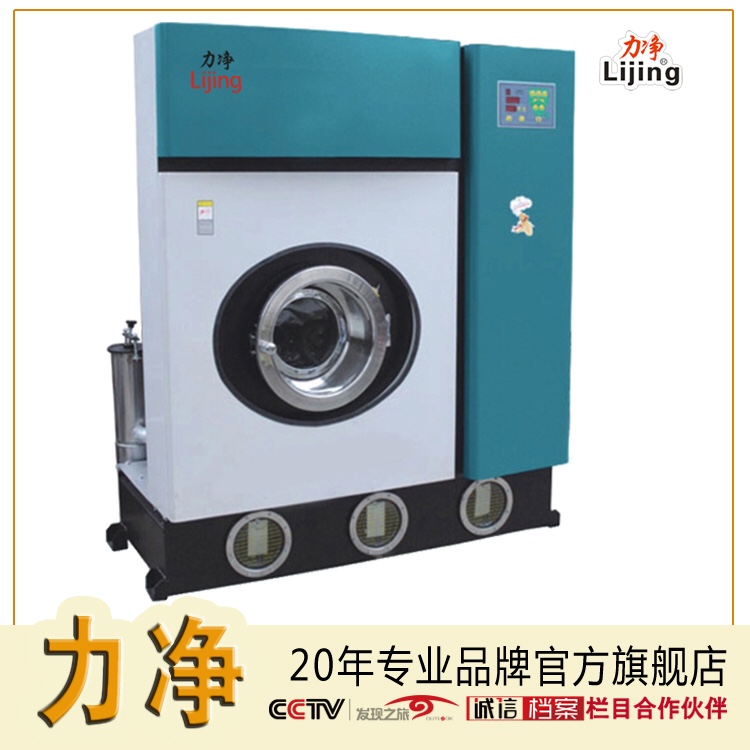

GX series micro computer automatic dry cleaning machine
